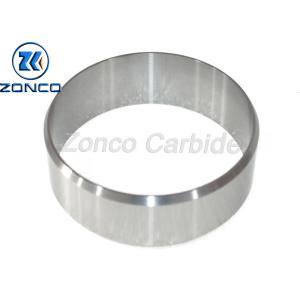

Blank Tungsten Carbide Mechanical Seal Ring High Wear Resistance

Name: Blank Tungsten Carbide Mechanical Seal Ring High Wear Resistance
Brand: ZONCO
Price: 1 USD

Wholesale Blank Tungsten Carbide Mechanical Seal Ring High Wear Resistance from china suppliers

Brand Name : ZONCO

Model Number : Customized

Certification : ISO9001:2015

Place of Origin : Zhuzhou

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T,

Supply Ability : 100000 piece/pieces per month

Delivery Time : 30-35 working days

Packaging Details : carton or wooden case. Also can be customized as per your requirement.

Application : available for nearly every rolling

Material : 100% Virgin Tungsten Carbide

Surface : excellent surface finish of the rolled product

Feature : Higher hardness

Name : Carbide flat seal rings

Packing : Wooden box

Contact Now

Blank Tungsten Carbide Flat Seal Rings With High Wear Resistance And Well Corrosion Resistance

Advantages: 1. 100% virgin raw material.

2. Inspection reports can be provided.

3. Customized parts are available.

Product Application:

We can manufacture both rough blank tungsten carbide seal rings and finished rings with high precision. With high wear resistance and well corrosion resistance, tungsten carbide material is better than ceramic and silicon carbide material.


Blank Tungsten Carbide Mechanical Seal Ring High Wear Resistance

Grades:

-With 6% Nickel, excellent corrosion resistance.

-With 6% Cobalt, 8% Cobalt, 12% Cobalt with higher hardness.

Most of the tungsten carbide seal rings are customized parts. Please send the drawing to us! Freely to contact us if there is anything we can do for you!

Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
Grade	WC%	Co/Ni %	Physical and mechanical properties			Grain size (μm)	Recommended application
Grade	WC%	Co/Ni %	Density (g/cm3)	TRS (N/mm²)	Hardness (HRA)	Grain size (μm)	Recommended application
ZG01	100	0	15.3-15.5	1200	95.5	0.3	Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X	96	4	15.0-15.2	1600	92.8	0.8-1.0	Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG06	94	6	14.8-15.1	2500	90.0	1.2	Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X	94	6	14.8-15.1	2400	91.5	1.0	Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A	94	6	14.8-15.1	2150	92.5	0.6-0.8
ZG08	92	8	14.6-14.9	2700	89.0	1.2-1.6	Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2	90	10	14.3-14.6	3800	91.7	0.7	Good general performance, suitable for casing and oil nozzle products
ZG11	89	11	14.3-14.7	2800	88.5	1.2-1.6	Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X	88	12	14.2-14.5	3000	89.5	1.0-1.2	Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15	85	15	13.8-14.2	3000	86.5	1.2-1.6
ZG15X	85	15	13.8-14.2	4500	89.0	0.7	Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20	80	20	13.4-13.8	3100	85.0	1.0	Excellent wear resistance and toughness
ZN06	94	6	14.5-14.9	2000	90.0	1.2	Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09	91	9	14.3-14.6	2300	89.0	1.2-1.6
ZN11	89	11	14.0-14.3	2600	88.0	1.2
